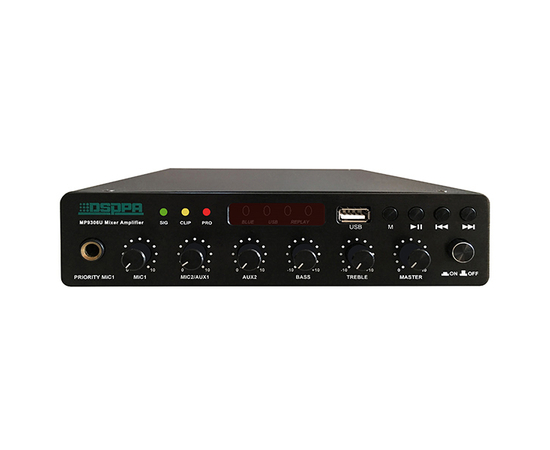

DSPPA MP9306U
● Digital amplifier module, high efficiency (85%)
● Built-in USB & Bluetooth module
● 2 AUX & 2 Mic inputs & 1 AUX output
● Each AUX & Mic input with individual volume control
● Mic 1 of 6.35mm in front panel, with priority & muting
● With priority input and 100V input
● 1 U compact design, space and cost saving
The following is prescribed feature of MP9306U digital stereo amplifier.
Model |
MP9312U |
MP9306U |
||
Rated Output Power |
120W (Note: Please use a constant-voltage speaker within the power range) |
60W (Note: Please use a constant-voltage speaker within the power range) |
||
Rated Output Voltage |
100V |
|||
Sensitivity |
MIC1 IN |
0.005(±1mV) |
||
|
MIC2 IN |
0.006(±1mV) |
||
|
LINE1 IN,LINE2 IN, PRIORITY IN |
0.3(±20mV)VRMS |
||
|
PRIORITY IN-100V |
100 VRMS |
||
SNR |
MIC1,MIC2,LINE1 IN |
≥74db(MAX.) |
||
|
LINE2 IN,INPUT PRIORITY |
≥80dB(MAX.) |
||
Frequency Range |
80Hz-15kHz (±3dB) |
|||
THD |
≤0.5% (1K under normal working condition) |
|||
Working Voltage |
AC220V/50Hz |
|||
Tone |
Bass |
±10dB(100Hz) |
||
|
Treble |
±10dB (10kHz) |
||
Rated Power Consumption |
150W |
75W |
||
Package Dimensions (L×W×H) |
310×275×120mm |
|||
Machine Dimensions (L×W×H) |
200×190×44mm |
|||
Net Weight |
1.5kg |
|||
Gross Weight |
2kg |

- USB
- Bluetooth
